High-Performance Wire Rope Fittings
When safety, durability, and absolute reliability are non-negotiable, you need rigging components engineered for the toughest environments. Our extensive range of premium wire rope fittings is selected specifically to meet the rigorous demands of heavy industry, maritime, and construction applications.
From heavy-duty sockets featuring advanced low-temperature metallurgy to secure terminations built for maximum efficiency, we provide the critical links that keep your operations moving safely.

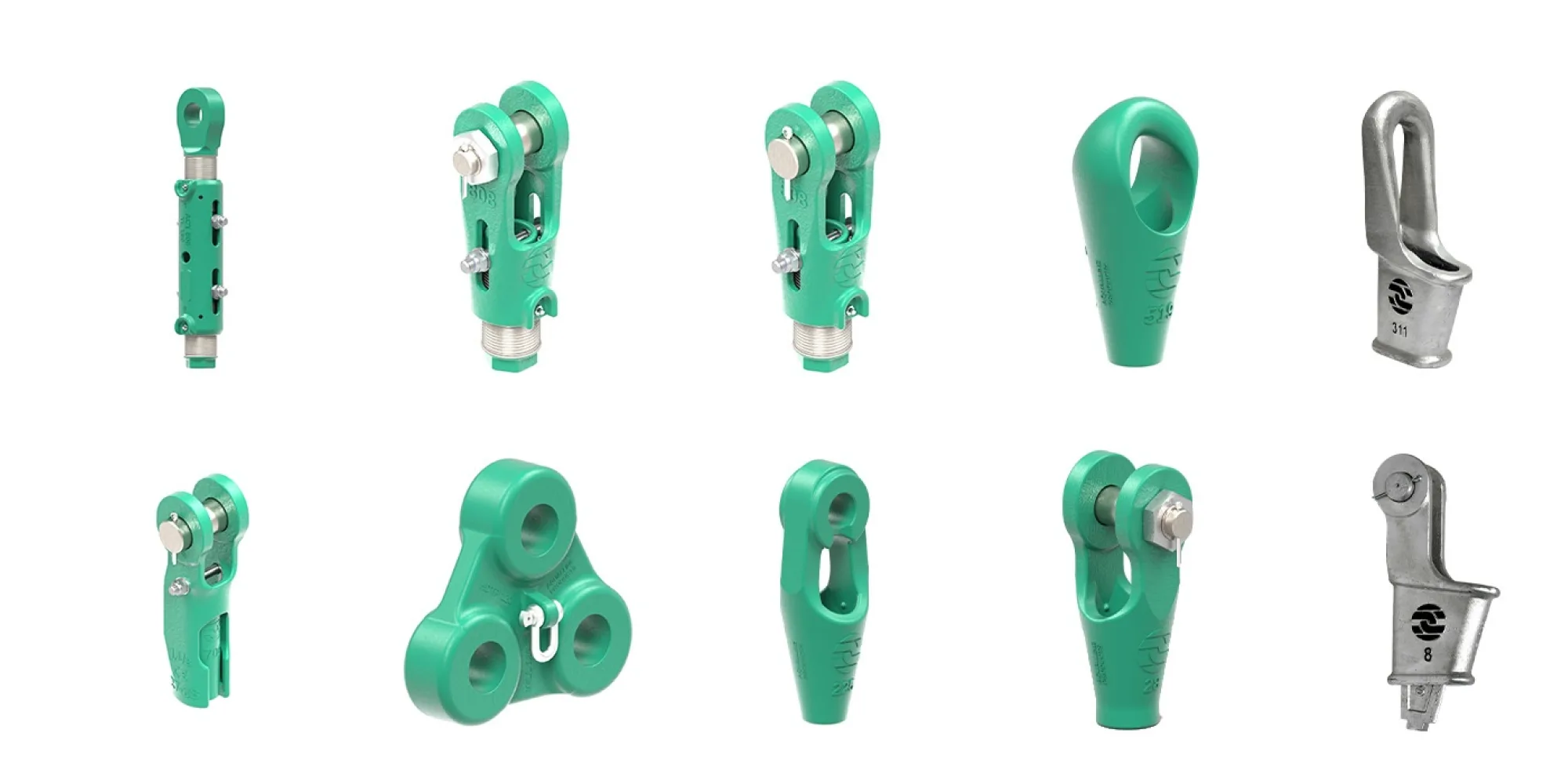

AquaLine Range: Designed to Perfection
Welcome to the AquaLine Portfolio, a premium selection of wire rope sockets engineered for ultimate efficiency, extended operational life, and uncompromising safety.
When your projects demand heavy-duty reliability, the AquaLine range delivers market-leading performance under the toughest conditions.
Key Features & Technical Advantages
- The high-quality alloy cast steel material, has an impact value of 50J at -20 °C Charpy-V. On request, we can also provide material certification with an impact value of 27J at -46 °C Charpy-V or offer special high alloy engineering steel with impact values of up to 40J at -50°C Charpy-V.
- Proof loading is standard at 40% of the Minimum Breaking Load.
- Each socket is clearly marked with a model number, heat number and wire rope size.
AquaLine Closed Spelter Sockets (CSS)
Available for wire rope sizes from ø6 mm to ø128 mm (1/4” to 5”) with an efficiency rating of 100%.
AquaLine Anchor Pendant Sockets (APS)
Available for wire rope sizes from ø31 mm to ø128 mm (1 1/4″ to 5″) with an efficiency rating of 100%.
AquaLine Open Spelter Sockets (OSS)
Available for wire rope sizes from ø6 mm to ø128 mm (1/4” to 5”) with an efficiency rating of 100%.
AquaLine Open Wedge Sockets (OWS)
Available for wire rope sizes from ø5 mm to ø86 mm (1/4” to 3 3/8”) with an efficiency rating of 85-92%.
AquaLine Open Wedge Sockets with Integrated Tail Clamp (OWS ITC)
Available for wire rope sizes from ø5 mm to ø36 mm (1/4″ to 1 3/8″) with an efficiency rating of 85-92%.
AquaLine Closed Wedge Sockets (CWS)
Available for wire rope sizes from ø17 mm to ø86 mm (3/4” to 3 3/8”) with an efficiency rating of 85-92%.
AquaLine Open Strand Spelter Sockets (OSSS)
Available in sizes from ø20 mm to ø95 mm structural strand (3/4″ to 3 3/4″) with an efficiency rating of 100%.
AquaLine Mobile Harbor Crane Sockets (MHCS)
Available for wire rope sizes from ø31 mm to ø65 mm with an efficiency rating of 100%.
AquaLine Open DIN Sockets (ODS)
Available for wire rope sizes from ø12 mm to ø68 mm (1/2″ to 2 5/8″) with an efficiency rating of 100%.
AquaLine Open JIS Sockets (OJS)
Available for wire rope sizes from ø15 mm to ø43 mm (5/8″ to 1 5/8″) with an efficiency rating of 100%.
AquaLine Fast Connector Sockets with Pin (FCS)
Available for wire rope sizes from ø11 mm to ø58 mm (7/16” to 2 1/4”) with an efficiency rating of 100%.
AquaLine Fast Connector Sockets with Bolt (FCS)
Available for wire rope sizes from ø11 mm to ø58 mm (7/16” to 2 1/4”) with an efficiency rating of 100%.
AquaLine Adjustable Open Spelter Sockets with Pin (AOSS)
Available for wire rope sizes from ø18 mm to ø48 mm (3/4″ to 1 7/8″) with an efficiency rating of 100%.
AquaLine Adjustable Open Spelter Sockets with Bolt (AOSS)
Available for wire rope sizes from ø18 mm to ø48 mm (3/4″ to 1 7/8″) with an efficiency rating of 100%.
AquaLine Adjustable Open Turnbuckle Sockets (AOTS)
Available for wire rope sizes from ø18 mm to ø48 mm (3/4″ to 1 7/8″) with an efficiency rating of 100%.
AquaLine Adjustable Closed Turnbuckle Sockets (ACTS)
Available for wire rope sizes from ø18 mm to ø48 mm (3/4″ to 1 7/8″) with an efficiency rating of 100%.
AquaLine Turnbuckle Eye-Eye (TBL-EE)
Non-jamming turnbuckles with eye-eye connections for smooth and reliable tensioning.
AquaLine Turnbuckle Eye-Jaw (TBL-EJ)
Non-jamming turnbuckles with eye-jaw connections for smooth and reliable tensioning.
AquaLine Turnbuckle Jaw-Jaw (TBL-JJ)
Non-jamming turnbuckles with jaw-jaw connections for smooth and reliable tensioning.
AquaLine Heavy Duty Triangle Plates (HDTP)
Available from size HDTP 9.5 to HDTP 500. Suitable for commercial bow shackles that are designed according to EN 13889 or Fed. Spec. RR-C.271.
AquaLine Solid Wire Rope Thimbles (SWRT)
Available for wire rope sizes from ø7 mm to ø80 mm (5/16″ to 3″) with an efficiency rating of 90%.
AquaLine Wire Rope Clips (WRC)
Available for wire rope sizes from ø3 mm to ø90 mm (1/8″ to 3 1/2″).
